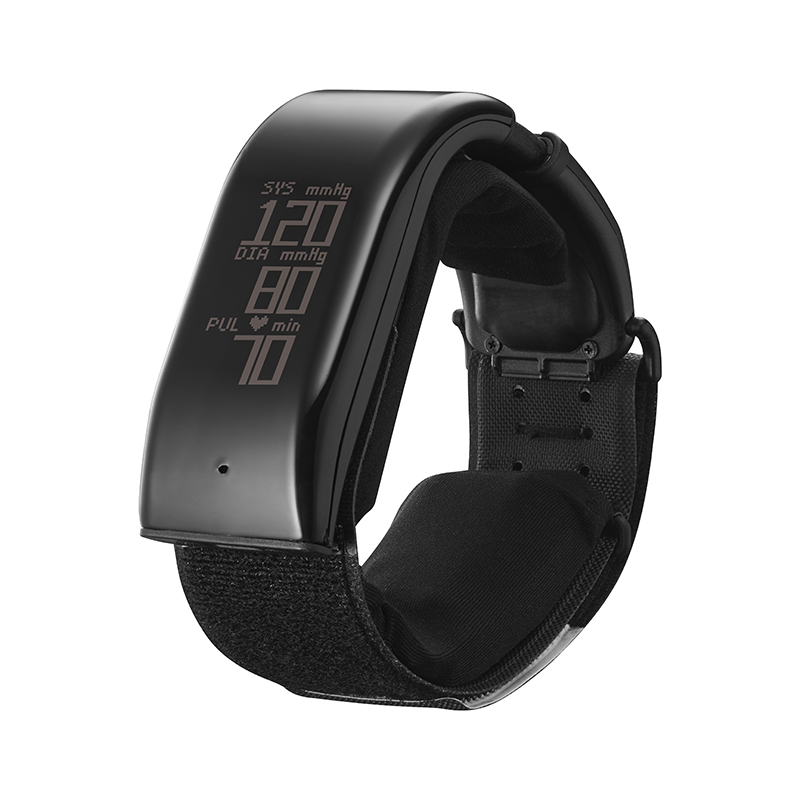

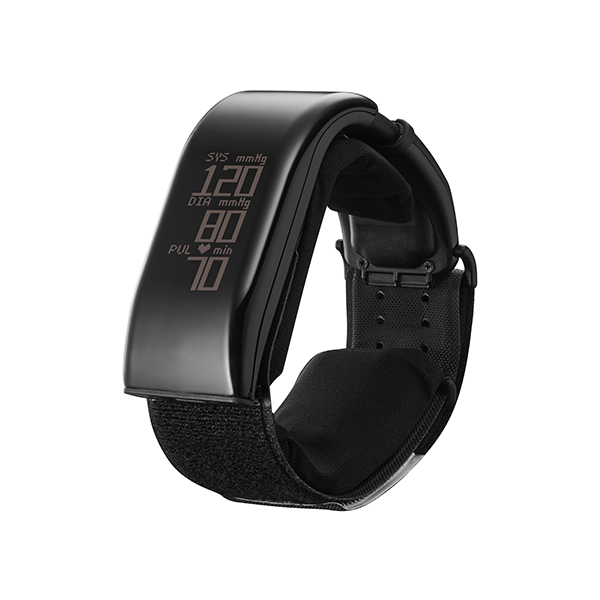

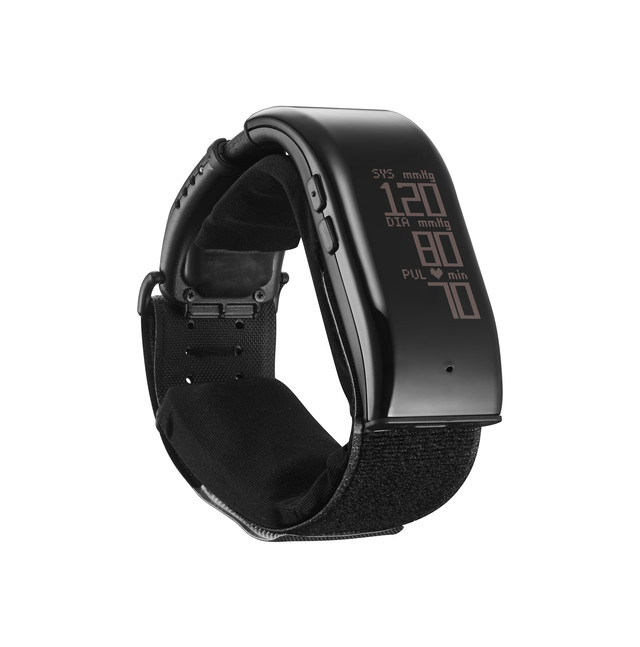

H2-BP 는 착용 가능한 혈압계 입니다


H2-BP는 착용이 가능한 혈압계 입니다.
출시된 제품 중에서 작고, 가벼운 혈압계 입니다.


무게


  • 43g (본체)
  • 120g (포장 ; 밴드, 충전기, 설명서)


베터리


  • 리튬-이온 폴리머 120mAh/3일
  • 충전시간 : 1시간 30분


블루투스


  • Bluetooth (4.0)

제품상세

배터리
3.7V 리튬-이온 폴리머 내부 배터리
충전 시간
1시간 30분
배터리 시간
3일(측정 횟수에 따라서 줄어듦)
혈압
측정 범위 : 30 ~ 260mmHg
정확도 : ±5mmHg

맥박수
측정 범위 : 40bpm ~ 180bpm
정확도 : ±5%
커프 압력 오차 표시 한계
혈압 ±3mmHg
맥박 ±5%
무게약 43g
사이즈60(H) X 75(D) X 24(W)
디스플레이OLED (96 X 39픽셀)
메모리200개의 측정 결과

Specifications

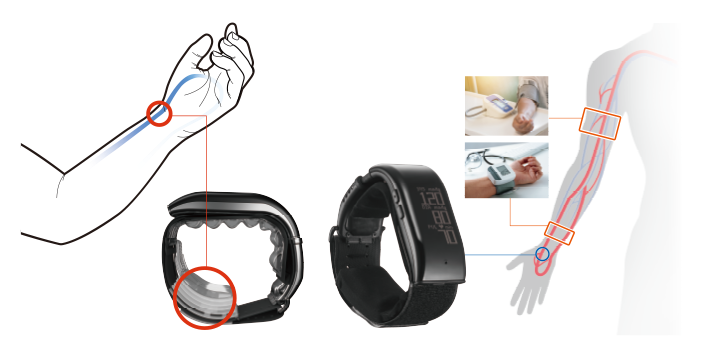

Measuring BP from both radial and ulnar may result in overestimation due to the different depth of the arteries.

H2-BP measures BP from a single stable signal of the radial artery only.

The smallest medical bp monitor in the world
Wristband blood pressure monitor

H2-BP measures BP from a single stable signal of the radial artery only.

  • Measuring BP by compressing the radial artery only.
  • The radial artery sits right on the radial bone.
  • BP can be measured even with a small amount of pressure to block the radial artery.

Reliable with stable signal

  • Only single stable signal is detected from the radial artery.
  • Eliminate the disrupting signal from ulnar artery.
  • H2-BP has been approved as a medical grade device by the clinical study by the university hospital with the tolerance within +/- 5 mmHg margin.

Comfortable and user friendly

  • While measuring BP, ulnar artery is not blocked, therefore the blood circulation continues.

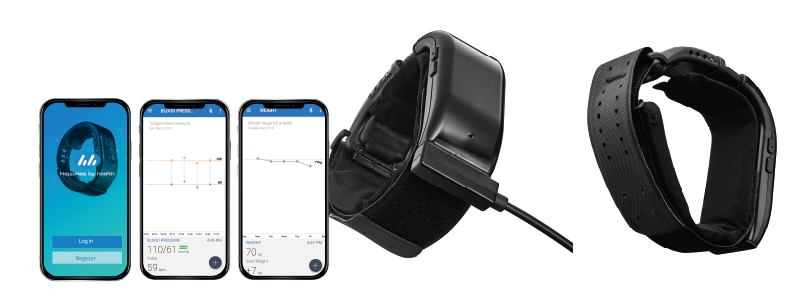

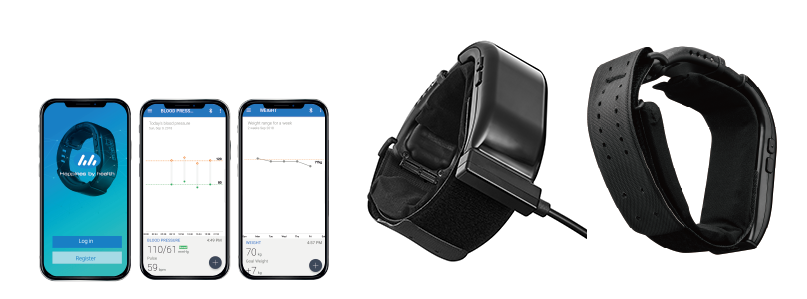

  • The data can be viewed via bluetooth connected smartphone app.

How to use

1. Cuff Setting

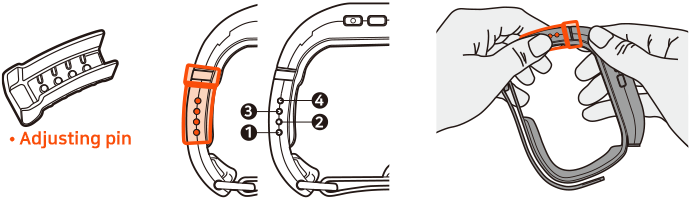

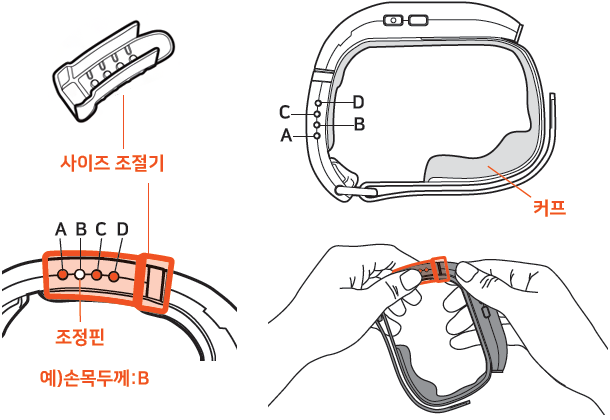

     _Height adjustment

  • Put the adjusting pin into the hole on the band as shown below
  • Push or pull while pressing the adjusting pin so that the fixed hole will be positioned at the measured number (1~4)

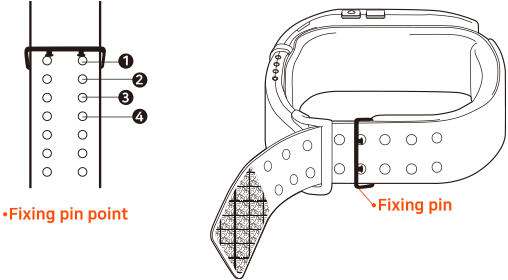

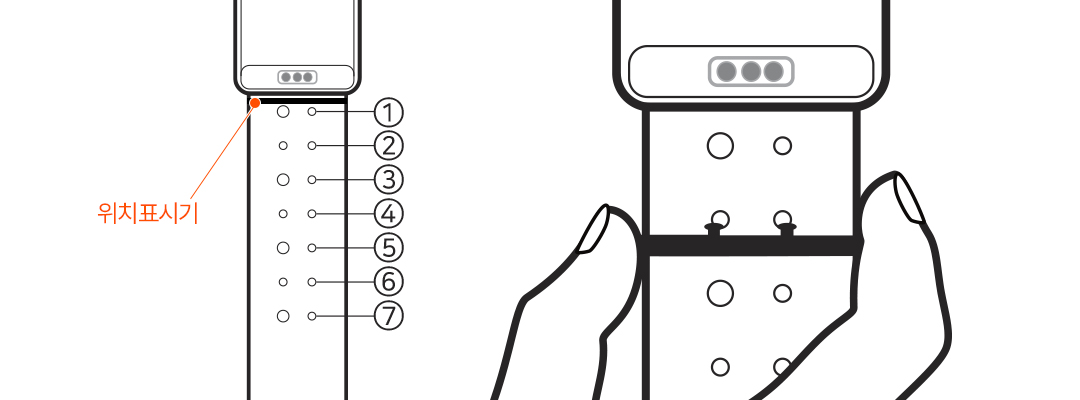

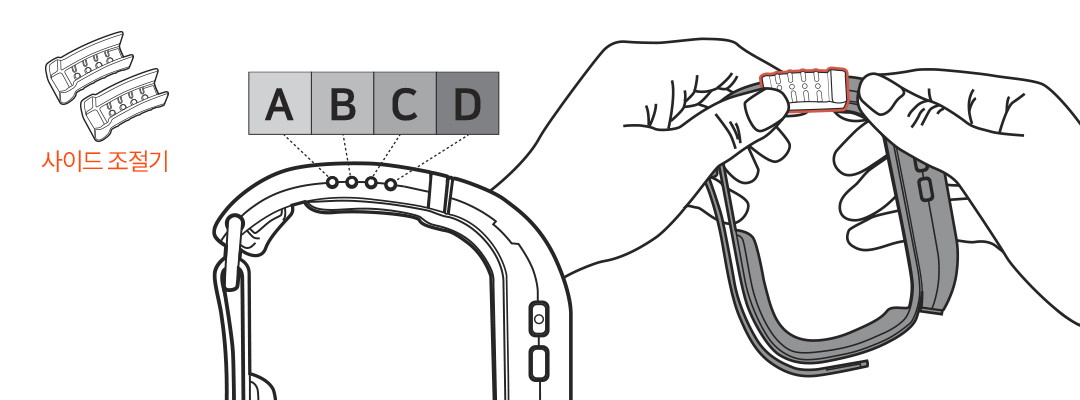

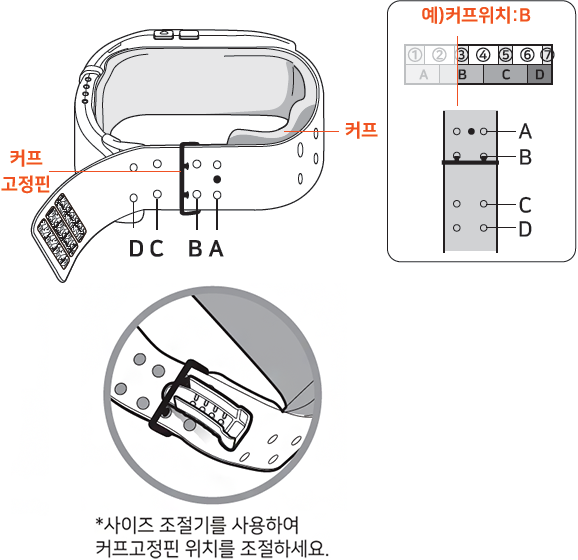

     _Cuff position adjustment

  • Adjust the cuff position by inserting the fixing pin according to the number (1~4)

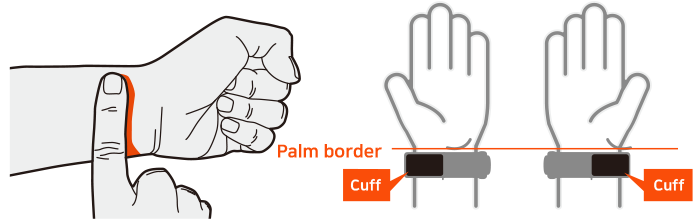

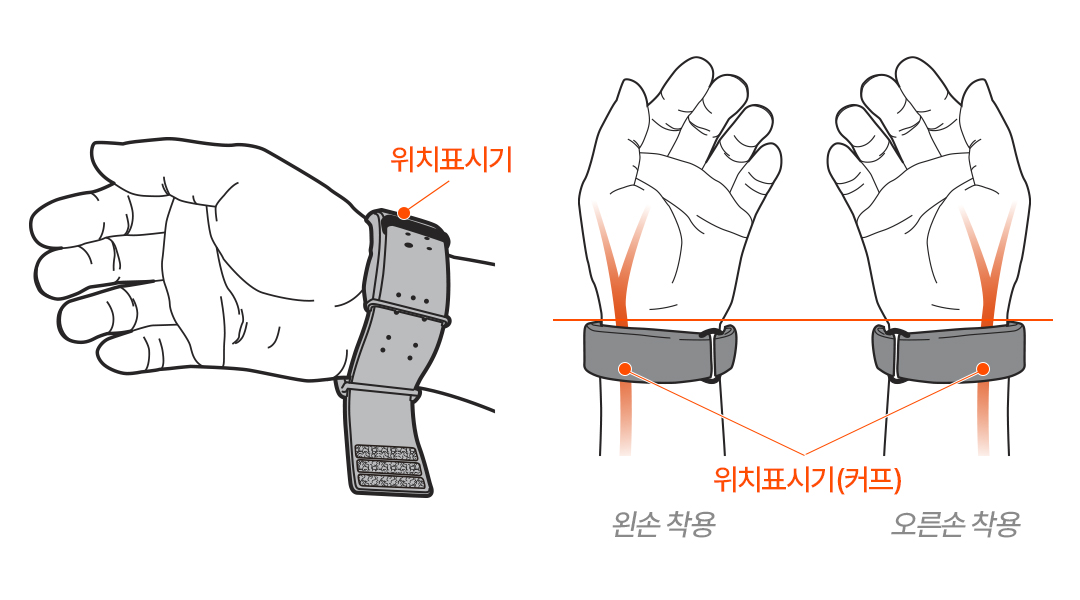

2. Wearing

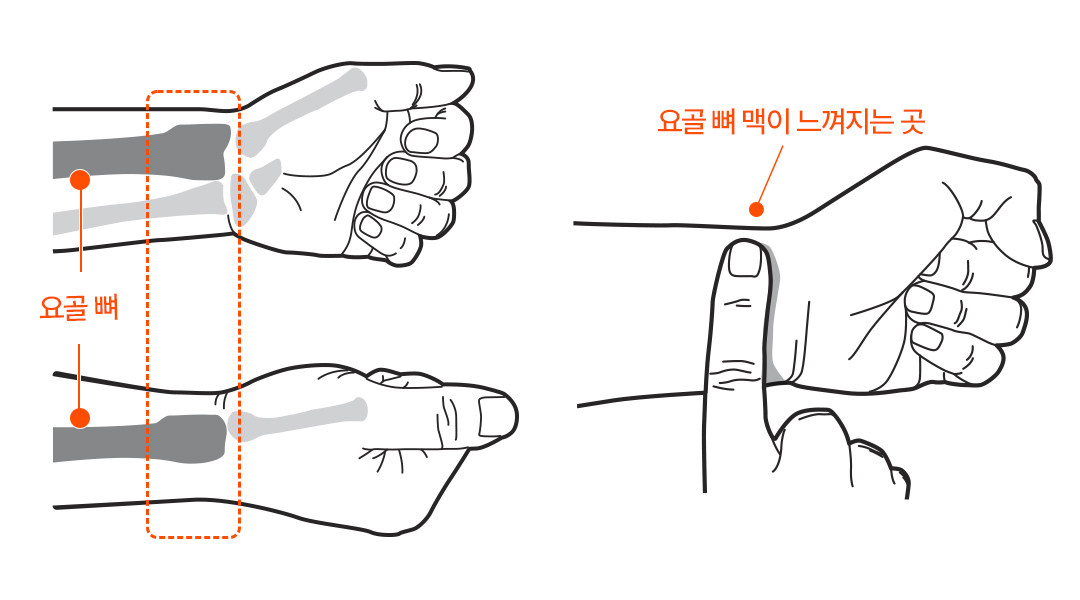

  • Find the strong pulse point on the radial bone
  • Wear it as the cuff is located on that point

3. Measuring

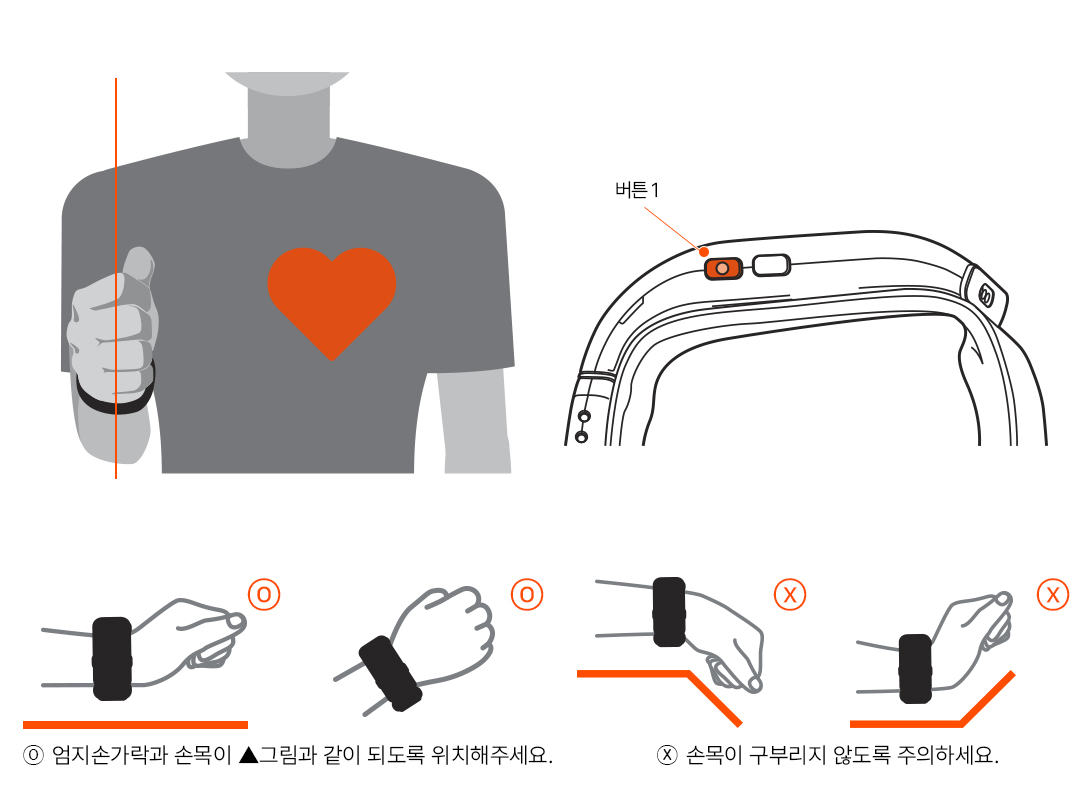

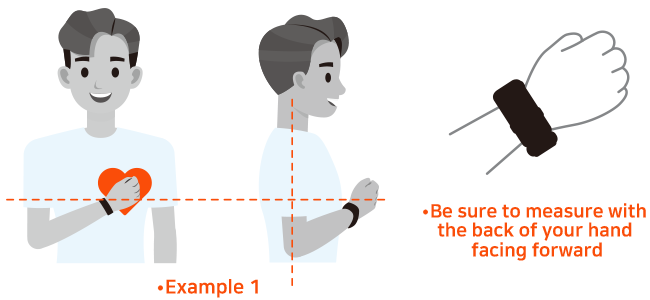

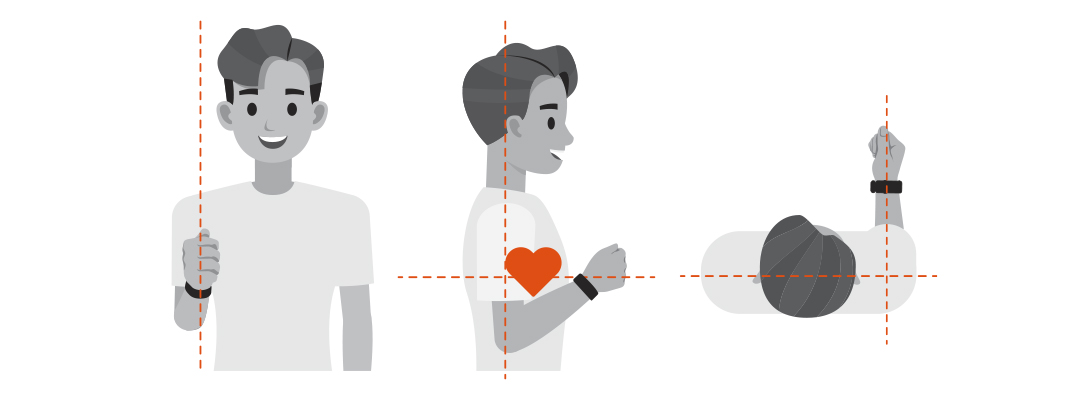

     _Posture

  • Raise your measuring arm from the straight position and set the height with the heart
  • Lightly clench your fist and try not to put pressure on your hand

갤러리

H2CARE

H2Care는 혼자서 관리하기 어려웠던 혈압을 스스로 측정 관리 할 수 있도록 도움을 주는 당신의 파트너 입니다. 이로써, 혈압의 체계적인 관리가 가능해 집니다.

라이프 스타일을 개선하세요

고혈압은 생활 습관, 여가 활동과 깊은 연관성이 있습니다.

H2-BP는 상시 착용 가능한 혈압계입니다
